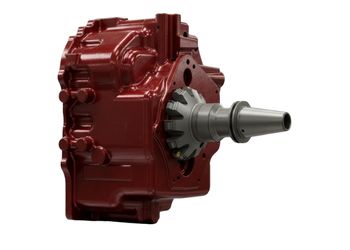

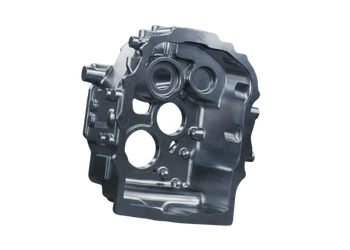

Tlb Transmission
Set-up OP-10
Operation Details : Milling, Drilling, Holemill, Dowelling, Tapping, Boring
Cut Time : 15.4 Min
No of Tools : 27 Nos
Set-up OP-20
Operation Details : Milling, Drilling, Tapping, Profile Cutter, Face Grooving
Cut Time : 15.4 Min
No of Tools : 30 Nos
Sigma successfully provided tooling for TLB transmission components, focusing on achieving precision in critical features like shaft bores, gear profiles, and housing dimensions. By combining customised tool designs and advanced cutting technologies, we ensured optimal tool stability and consistent results across multiple machining stages. This solution helped improve cycle time efficiency, reduced tool wear, and supported high-quality production at scale.
Cutting Tools - Model
Cutting Parameters
Summary
Within 15% Tolerance
