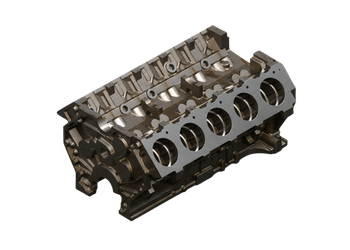

Dv 10 Cylinder Block
Set-up OP-10
Operation Details : Milling, Drilling, Threadmilling
Cut Time : 22.61 Min
No of Tools : 33 Nos
Set-up OP-20
Operation Details : Gundrill, Shellmill, Crank , Notch And Web Milling
Cut Time : 81.17 Min
No of Tools : 25 Nos
Set-up OP-30
Operation Details : Face Milling, Drilling, Reaming, Burnish
Cut Time : 86.96 Min
No of Tools : 36 Nos
Set-up OP-40
Operation Details : All Cam Bore, Thrust Milling, Bore Finish
Cut Time : 208.35 Min
No of Tools : 28 Nos
For the DV-10 cylinder block production, Sigma delivered a tailored tooling solution that ensured accurate machining of bores, faces, and threads. By utilising high-performance boring bars, precision drills, and vibration-dampening tools, we improved tool life, machining accuracy, and cycle times. The result was a production process that maximised efficiency while maintaining the necessary quality control to meet the demanding specifications of the DV-10 block.

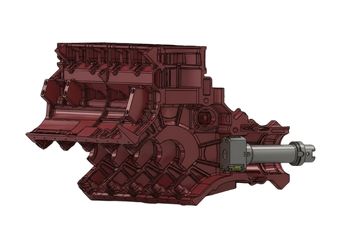

Cutting Tools - Model
Cutting Parameters
Summary
Within 15% Tolerance
