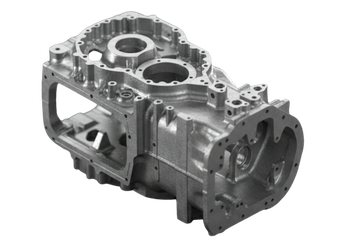

Case Transmission

Set-up OP-10

Operation Details : Top and Top And Bottom Side Drilling , Tapping , Doweling & Finish Milling Operations

Cut Time : 18.20 Min

No of Tools : 21 Nos

Set-up OP-20

Operation Details : All Peripheral Side Drilling, Tapping , Doweling & Boring & Milling Operations Finish Operations

Cut Time : 46.3 Min

No of Tools : 57 Nos

Sigma provided comprehensive tooling solutions for case transmission components, focusing on tight tolerances and feature integrity for critical elements like bores, shaft seats, and mounting faces. Our advanced cutting tools and anti-vibration technologies ensured stable machining and precise hole alignment, even in complex geometries. This solution helped enhance productivity, improve tool longevity, and reduce scrap rates, delivering high-quality case transmission components at scale.

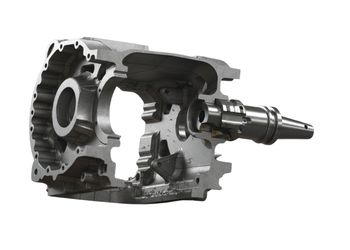

Cutting Tools - Model

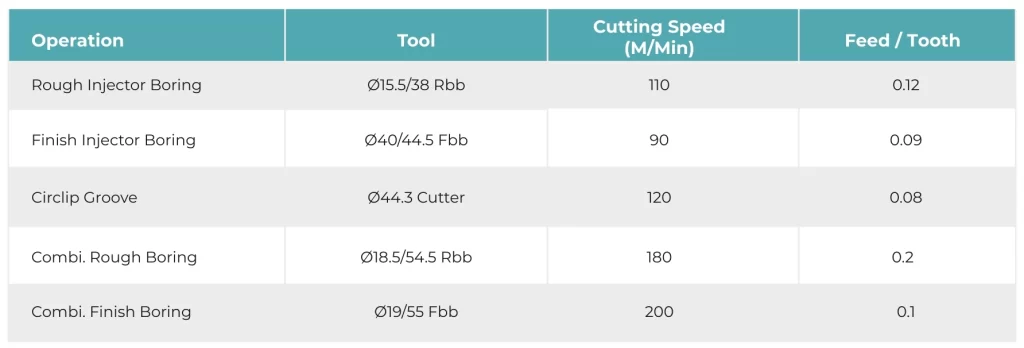

Cutting Parameters

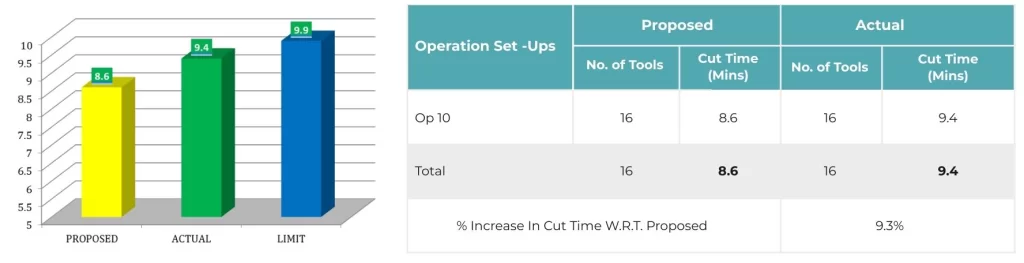

Summary

Within 15% Tolerance
